‹ Home › Inventory › Harley-Davidson® Breakout™ 2023 FXBR

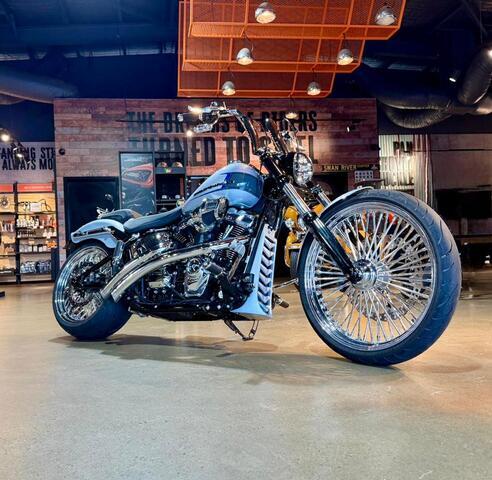

MY23 Harley-Davidson Softail Breakout S 117 w/ABS (FXBR)Original RH-D Shop Build!! Presents Immaculately & comes Loaded with Lots of Extras. CR483 CAM Maximus Tuner 23" Chrome Fat Spoke front wheel 8" Chrome Fat Spoke rear wheel Air ride rear suspension Burleigh 14" X 2" High Ball bars Freedom Chrome Radical Radius pipes Fork Extensions Upper fork cover kit SIKtail Tail Tidy Arlen Ness mini oval mirrors HD Magnum grips - 2" and Lots More... mso-bidi-font-family:"Segoe UI Emoji""> SAVE $$$ on replacement value!! Experience the Dream at Harley-Davidson Perth. Western Australia's Number One Harley-Davidson Dealers. Ready to make this bike yours? Visit us at either of our two convenient locations one just a short drive down Albany Highway, another a short drive south toward Rockingham. We're not just dealers; we're your partners in the Harley-Davidson lifestyle. What Sets Us Apart: * Quality Assurance: All our Pre-Owned H-D's come workshop tested and serviced * Flexible Financing: Tailored finance and insurance options from Harley-Davidson Finance and several other lenders * Performance Tuning: Our in-house dyno and tuning team can help you get the most from your Harley-Davidson. * Certified H-D Technicians and Master Technicians. * Quality Selection: The most comprehensive range of New and Pre-owned Harley-Davidson's in Western Australia. * Fair Trade Values: Market-leading trade-in prices for all makes and models of bikes. Looking for something different? Our buying team is always expanding our range, ensuring you'll find exactly what you're seeking. Whether you're upgrading, starting fresh, or customizing your ride, we have the expertise and inventory to make it happen. Enquire today to experience the difference that Rockingham Harley-Davidson has to offer.

Specifications

Dimensions

add remove
- Length:

  2370 mm
- Seat height, unladen:

  665 mm
- Ground clearance:

  115 mm
- Rake:

  34
- Trail:

  145 mm
- Wheelbase:

  1695 mm
- Tyres, front specifications:

  130/60B21,63H,BW
- Tyres, rear specifications:

  240/40R18,79V,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  4.2 l
- Weight, as shipped:

  296 kg
- Weight, in running order:

  309.80 kg
Engine

add remove
- Engine:

  Milwaukee-Eight™117
- Bore:

  103.5 mm
- Stroke:

  114 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  167 Nm
- Engine torque (RPM):

  3500
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  43 mpg (5 l/100km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges:

  2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
